Solar generator installation tips for home use

Installing a solar generator for home use is a smart move towards energy independence and environmental sustainability. However, to ensure that your solar generator operates efficiently and safely, it's essential to follow proper installation procedures. Whether you’re using the generator as a backup power source or for off-grid living, these installation tips will help you get the most out of your solar generator.

1. Choose the Right Location for Solar Panels

The efficiency of your solar generator heavily depends on the location of the solar panels. To maximize sunlight exposure, consider the following:

• South-Facing Roof: In the northern hemisphere, a south-facing roof offers the best angle to capture sunlight throughout the day.
• Tilt Angle: Adjust the tilt of the panels according to your latitude. For optimal performance, the angle should equal your latitude to maximize sunlight absorption.
• Avoid Shading: Ensure the panels are free from obstructions like trees, chimneys, or nearby buildings that can cast shadows. Even partial shading can significantly reduce the panels' efficiency.

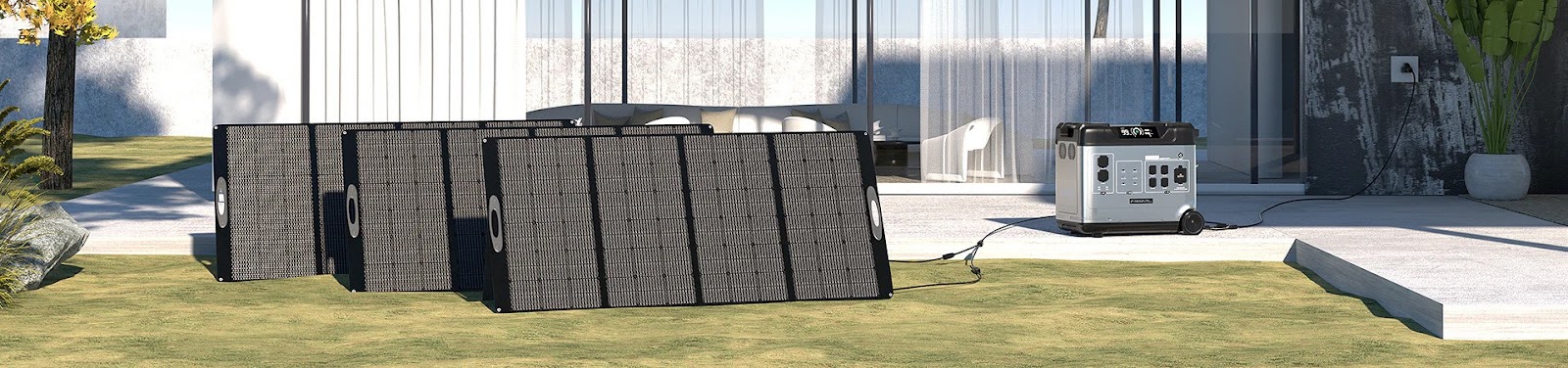

• Ground Mounting: If roof space is limited, consider ground-mounted solar panels. These can be placed in an open area where they receive full sunlight.

2. Determine the Appropriate System Size

The size of your solar generator for home use system should match your household’s energy needs. Calculate the wattage of the devices and appliances you plan to power during an outage or while off-grid.

• Energy Audit: Conduct an energy audit of your home to determine the total watt-hours (Wh) required. This will help you choose the right generator size and number of solar panels.
• Battery Capacity: Ensure that the generator’s battery has enough capacity to store sufficient energy for your needs. A larger battery may be necessary for extended power outages.

3. Plan for Proper Wiring and Connections

Proper wiring and connections are crucial for the safe and efficient operation of your solar generator.

• Use the Correct Gauge Wire: The wire gauge must be appropriate for the current and distance between the solar panels, charge controller, battery, and inverter. Undersized wires can lead to voltage drops and overheating.
• Connect in Parallel or Series: Depending on your system design, you may need to connect the solar panels in parallel or series. Parallel connections increase current, while series connections increase voltage.
• Secure Connections: Use weatherproof connectors and ensure all connections are tight to prevent power loss and avoid short circuits.

4. Install a Charge Controller

A charge controller is essential to regulate the voltage and current coming from the solar panels to the battery. It prevents overcharging, which can damage the battery.

• MPPT vs. PWM: Choose between Maximum Power Point Tracking (MPPT) and Pulse Width Modulation (PWM) controllers. MPPT controllers are more efficient, especially for larger systems, as they adjust the voltage to extract maximum power from the solar panels.
• Placement: Install the charge controller close to the battery to minimize power loss.

5. Place the Battery in a Safe Location

The battery stores energy and should be placed in a location that is both safe and accessible.

• Ventilation: If you’re using lead-acid batteries, place them in a well-ventilated area to avoid the buildup of hydrogen gas, which is explosive. Lithium-ion batteries are safer but still require proper ventilation.
• Temperature Control: Extreme temperatures can affect battery performance and lifespan. Place the battery in a temperature-controlled environment, ideally between 20°C and 25°C (68°F and 77°F).
• Safety Measures: Ensure the battery is securely mounted to prevent movement and possible damage. Consider installing a battery management system (BMS) for additional safety.

6. Install the Inverter

The inverter converts the DC power stored in the battery into AC power, which is used by most household appliances.

• Sizing: Choose an inverter that matches your power needs. The inverter’s wattage should be equal to or greater than the total wattage of the devices you plan to run simultaneously.
• Placement: Install the inverter close to the battery to reduce power loss. Ensure the area is well-ventilated to prevent overheating.
• Pure Sine Wave vs. Modified Sine Wave: For home use, a pure sine wave inverter is recommended as it provides clean power, similar to the grid, and is compatible with sensitive electronics.

7. Integrate with Home Electrical System

If you plan to use the solar generator as a backup power source, you may need to integrate it with your home’s electrical system.

• Transfer Switch: Install a manual or automatic transfer switch to safely switch between the grid and your solar generator during an outage. This prevents backfeeding, which can be dangerous for utility workers.
• Sub-Panel: Consider installing a sub-panel dedicated to the circuits you want to power with the solar generator. This simplifies the installation and operation.
• Consult a Professional: If you’re unsure about the integration process, it’s best to consult a licensed electrician to ensure the installation complies with local electrical codes.

8. Test the System

After installation, thoroughly test the solar generator system to ensure it’s working correctly.

• Check Connections: Inspect all wiring and connections to ensure they are secure and free from corrosion.
• Monitor Performance: Use the generator’s display or an app to monitor performance, including battery charge level, input/output wattage, and solar panel efficiency.
• Simulate an Outage: Test the system by simulating a power outage to ensure that the generator can seamlessly provide power to your home.

9. Maintain the System

Regular maintenance is crucial to keep your solar generator operating at peak efficiency.

• Clean Solar Panels: Dust, dirt, and debris can reduce the efficiency of solar panels. Clean them regularly using a soft brush and water. Avoid using harsh chemicals that could damage the panels.
• Inspect the Battery: Periodically check the battery for signs of wear or damage. Keep terminals clean and ensure proper electrolyte levels in lead-acid batteries.
• Firmware Updates: Some solar generators and inverters have firmware that can be updated to improve performance. Check the manufacturer’s website for updates.

10. Plan for Expansion

Your energy needs may grow over time, so it’s wise to plan for future expansion.

• Expandable Systems: Choose a solar generator that allows you to add additional solar panels or batteries to increase capacity.
• Modular Components: Opt for modular components that can be easily upgraded as your needs evolve.

Conclusion

Installing a solar generator for home use is a rewarding investment that provides clean, reliable energy and peace of mind during power outages. By following these installation tips, you can ensure your system is set up correctly, operates efficiently, and meets your household’s energy needs. Whether you’re a DIY enthusiast or working with a professional, careful planning and attention to detail will help you get the most out of your solar generator.
