Getting your hands on the MikroTik CCR1009-7G-1C-1S+ is an exciting step toward building a more powerful and reliable network. Whether you're managing a growing business, running a service provider setup, or upgrading your internal infrastructure, this router has the performance chops to back you up. But before you can enjoy its full potential, it needs to be set up properly.

If you're ready to take full advantage of this 9-core networking beast, this step-by-step guide will walk you through everything from unboxing to initial configuration. It’s designed to be beginner-friendly but still useful for experienced MikroTik users.

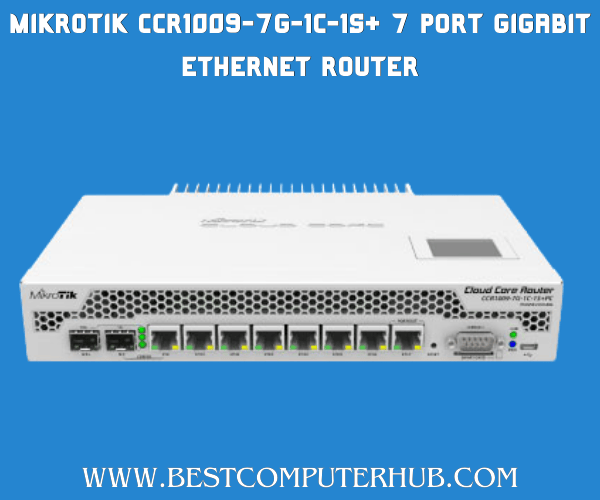

Upgrade your business network with the MikroTik ccr1009 7g 1c 1s+. This 9-core router delivers reliable and high-speed performance with multiple Gigabit ports and 10G capability. Its passive cooling ensures silent operation, while the combo port adds flexibility. Perfect for efficient routing and robust performance without breaking your budget. See why it’s the go-to choice for professional network solutions.

Step 1: Unboxing and Hardware Setup

Start by unboxing your CCR1009-7G-1C-1S+ and reviewing what’s included. You should find:

• The router unit

• Power adapter (with option to add a second for redundancy)

• Rackmount ears (if needed)

• Quick start guide


Begin by connecting the router to power using the main adapter. If you're setting it up in a rack, use the included ears to mount it securely. Connect your ISP or upstream network to one of the available Gigabit ports or the SFP+/combo port depending on your setup.

Use another Ethernet port to connect your computer for configuration. You’ll use this connection to access the router’s management interface.

Step 2: Accessing the Router via Winbox or WebFig

Once everything is powered on and connected, it’s time to log in. The most common way to configure MikroTik devices is through Winbox, a Windows-based GUI. You can also use a web browser through WebFig.

If you're using Winbox:

1. Download it from MikroTik’s official site.

2. Open Winbox and you’ll see the CCR1009 appear under "Neighbors."

3. Click on it, leave the username as “admin,” and leave the password blank (you'll change this soon).

4. Click “Connect.”


If you're using a web browser instead:

1. Open a browser and go to 192.168.88.1 (default IP).

2. Log in using “admin” with no password.


Step 3: Secure Your Router

The very first thing you should do after logging in is change the default login credentials. Leaving the default admin user with no password is a huge security risk.

To set a new password:

1. Go to System > Users.

2. Click on the “admin” user.

3. Set a strong password and click OK.


Optionally, you can create a new user with admin privileges and delete the default “admin” user.

Step 4: Update RouterOS

Before doing any configurations, make sure your RouterOS is up to date. This ensures you get the latest security patches and feature improvements.

To update:

1. Go to System > Packages.

2. Click Check for Updates.

3. If an update is available, click Download & Install.


The router will reboot automatically once the update is complete.

Step 5: Configure IP Address and DHCP

Now it’s time to assign a static IP address to the router and optionally configure it to serve as a DHCP server for your network.

1. Go to IP > Addresses.

2. Click + to add a new IP address.

3. Set the IP (e.g., 192.168.1.1/24) and assign it to your LAN interface.

4. Click OK.


To enable DHCP:

1. Go to IP > DHCP Server.

2. Click DHCP Setup.

3. Choose the interface you want to serve DHCP on (usually one of the Ethernet ports).

4. Follow the prompts to set the IP range, gateway, and DNS.


Step 6: Configure Internet Access

To get your router online, you’ll need to configure your WAN settings.

For dynamic IP (DHCP from your ISP):

1. Go to IP > DHCP Client.

2. Click + and select your WAN interface.

3. Enable it and click OK.


For static IP:

1. Go to IP > Addresses and assign your public IP to the correct interface.

2. Set your default route in IP > Routes with the gateway provided by your ISP.


Step 7: Set Up NAT and Firewall Rules

By default, MikroTik does not enable NAT, which is necessary for private IPs to access the internet.

To set up NAT:

1. Go to IP > Firewall > NAT.

2. Click + to add a new rule.

3. Set Chain to “srcnat.”

4. Set Out Interface to your WAN.

5. Under the Action tab, choose “masquerade.”

6. Click OK.


You should also check the firewall rules under IP > Firewall > Filter Rules to ensure basic protection is in place, like blocking invalid traffic and limiting access to the management interface.

Step 8: Test and Fine-Tune

Once everything is configured, try pinging a website (like 8.8.8.8) from a connected device to make sure your internet is working. You can also go to Tools > Ping from the router interface to run diagnostics.

From here, you can fine-tune your setup:

• Create VLANs for segmenting traffic

• Set up VPN access for remote users

• Configure bandwidth limits with queues

• Add monitoring tools for traffic insights


Step 9: Backup Your Configuration

After a successful setup, it’s always a smart move to back up your configuration.

1. Go to Files in Winbox or WebFig.

2. Click Backup and name your file.

3. Download it to a secure location for safekeeping.


That way, if anything goes wrong, you can restore your router in minutes instead of starting from scratch.

Conclusion

Setting up the MikroTik CCR1009-7G-1C-1S+ doesn’t have to be intimidating. With its robust feature set and user-friendly tools like Winbox and WebFig, you can get a high-performance network running in no time.

This router offers plenty of room to grow, so whether you're managing a single location or expanding to multiple branches, it’s a reliable foundation you can build on. Once your setup is complete, you’ll have full control, advanced security, and performance that doesn’t flinch under pressure.
