The rise of solar power as a sustainable and efficient energy solution has led to a surge in the installation of solar photovoltaic (PV) systems worldwide. Whether you are installing solar panels in a residential or commercial setting, ensuring the safety and proper functioning of your system is paramount. One essential component in achieving this is the DC solar isolator switch.

A DC solar isolator switch is a safety device that allows you to disconnect the direct current (DC) side of a solar system from the rest of the electrical system. It is an essential tool for maintaining safety during installation, maintenance, and troubleshooting. In this article, we will guide you through the process of choosing and installing the right DC solar isolator switch for your solar installation.

What Is a DC Solar Isolator Switch?

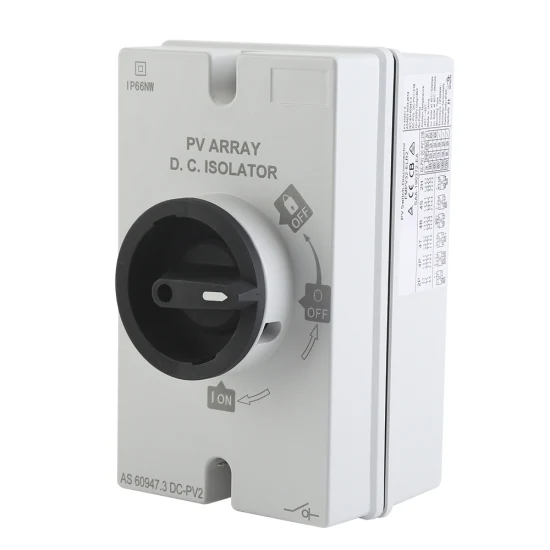

A DC solar isolator switch is a switch designed to isolate the solar array (solar panels) from the rest of the solar power system. The switch is located between the solar panels and the inverter, allowing users to safely disconnect the DC side of the system. This isolation is crucial for maintenance, repairs, or emergency situations, as it ensures that no electrical current is flowing through the system during these times.

These switches are required by electrical safety standards in many regions, ensuring the protection of technicians and property. They are designed to handle high DC voltages and currents that are typical of solar panel systems, providing an effective and safe means to disconnect the power.

Why Do You Need a DC Solar Isolator Switch?

There are several reasons why a DC solar isolator switch is essential for your solar installation. Let’s explore some of the most critical reasons:

1. Safety During Maintenance and Repairs

When performing maintenance or repairs on the solar system, it is vital to ensure that no current is flowing through the system. A DC isolator switch allows technicians to safely isolate the solar panels from the rest of the system, reducing the risk of electrical shock.

Without an isolator switch, there could be live currents in the system while work is being done, posing significant dangers. The switch makes the system safe to work on by disconnecting the solar array from the inverter and the electrical grid.

2. Compliance with Safety Standards and Regulations

In many regions, the installation of a DC solar isolator switch is not just recommended—it is required by electrical safety regulations. For example, the Australian Standard AS 5033 and the National Electrical Code (NEC) in the United States mandate the use of such switches in residential and commercial solar systems. Failure to comply with these standards could result in the system not passing inspection, potentially causing legal and insurance issues.

3. Prevention of Equipment Damage

A DC isolator switch helps prevent damage to sensitive equipment in your solar power system, such as the inverter. Without the ability to disconnect the solar array from the inverter, voltage fluctuations and overcurrent conditions could damage these components. By isolating the panels, the DC isolator switch ensures that no current flows when maintenance is being carried out, preserving the longevity of your equipment.

4. Improved System Control and Troubleshooting

The ability to quickly disconnect the solar panels from the rest of the system improves overall control of the system. In case of malfunction or fault detection, the DC isolator switch provides an easy and safe way to isolate the problem and troubleshoot the issue. This is especially helpful for preventing damage to other parts of the system during fault conditions.

Choosing the Right DC Solar Isolator Switch

Choosing the correct DC solar isolator switch is crucial to ensure safety, reliability, and efficiency in your solar installation. Here are some key factors to consider when selecting the right isolator switch:

1. Voltage and Current Rating

One of the first factors to consider when selecting a DC solar isolator switch is the voltage and current rating. The switch must be capable of handling the maximum DC voltage and current generated by the solar array. For example, most residential solar PV systems operate at a voltage range of 600V to 1000V DC, but commercial systems can operate at much higher voltages.

Ensure that the isolator switch you choose israted for the specific voltage and current levels in your system. The voltage rating should be higher than the maximum voltage output of your solar array, and the current rating should match the total current produced by the panels.

2. Type of Isolator Switch

There are two main types of DC isolator switches: manual and automatic. Manual isolator switches require the user to physically turn the switch to isolate the system, while automatic isolator switches can detect faults and isolate the system automatically.

Manual Isolator Switches: These are typically more affordable and widely used in residential solar systems. They provide a simple, straightforward way to disconnect the solar array.

Automatic Isolator Switches: These are used in more complex systems, offering the advantage of automatically disconnecting the solar array in case of a fault, such as overvoltage or short circuit.

The type of isolator switch you choose will depend on the complexity and size of your system, as well as your personal preferences for ease of use and automation.

3. IP Rating (Ingress Protection)

The IP rating of the DC isolator switch refers to its ability to withstand environmental conditions such as dust, moisture, and water ingress. For outdoor installations, particularly in harsh weather conditions, choosing a switch with a high IP rating is essential.

IP65: This rating indicates that the switch is dust-tight and can withstand low-pressure water jets, making it suitable for outdoor use.

IP66 or higher: For more extreme weather conditions, consider a switch with a higher rating to ensure it remains protected from heavy rain, dust, and other environmental factors.

The higher the IP rating, the more durable and weather-resistant the switch will be.

4. Compliance with Standards

Ensure that the DC solar isolator switch you select is certified and complies with relevant industry standards. Look for certification marks such as IEC 60947-3 (International Electrotechnical Commission standard) and UL (Underwriters Laboratories), which ensure that the product has been tested for safety and quality
.

In some regions, there may also be local certification requirements that your switch must meet to comply with national safety codes.

5. Durability and Reliability

Since the isolator switch will be exposed to various environmental factors (especially if installed outdoors), it is crucial to select a durable and reliable model. Look for a switch made from high-quality materials, such as corrosion-resistant metals or durable plastics, to ensure it can withstand long-term exposure to sunlight, rain, and temperature fluctuations.

Installing the DC Solar Isolator Switch

Once you have chosen the right DC isolator switch, the next step is to install it correctly. Proper installation ensures that the switch functions as intended and provides maximum safety. Below is a general guide to installing the DC solar isolator switch.

1. Turn Off the Power

Before starting the installation process, ensure that all power sources are turned off to avoid electrical shock or injury. This includes disconnecting the solar array from the inverter and turning off the main circuit breaker.

2. Select the Installation Location

The DC isolator switch should be installed in a location that is easily accessible for operation and maintenance. It should be installed between the solar panels and the inverter, typically in the DC cable route. Choose a location that allows for easy manual operation of the switch and complies with local regulations regarding accessibility.

For outdoor installations, ensure that the switch is mounted in a weatherproof enclosure to protect it from the elements.

3. Wire the Switch

Connect the positive and negative terminals from the solar panels to the corresponding terminals on the isolator switch. Ensure that the connections are secure and properly insulated to prevent any electrical hazards. Use appropriate cable sizes that match the voltage and current ratings of your system.

4. Mount the Switch

Mount the isolator switch securely on a wall or bracket, ensuring it is positioned at a comfortable height for operation and complies with local regulations regarding installation height and accessibility.

5. Test the Installation

Once the switch is wired and mounted, perform a thorough test to ensure the switch is functioning correctly. Verify that the solar array is disconnected when the switch is in the "off" position and that the power flows when the switch is in the "on" position.

6. Label the Switch

Label the isolator switch with clear, easy-to-read markings indicating its purpose and the direction of operation. This helps users quickly identify and operate the switch when necessary.

Conclusion

Choosing and installing the right DC solar isolator switch is critical to the safety, performance, and longevity of your solar installation. By considering factors such as voltage rating, type of switch, IP rating, and compliance with industry standards, you can ensure that your system operates safely and efficiently. Proper installation of the switch, combined with regular maintenance and testing, will provide ongoing protection for your solar system, allowing you to enjoy the benefits of clean, renewable energy without compromising safety.
