Electricity plays a vital role in our daily lives, and efficient electrical systems are crucial for both residential and industrial applications. Among the many components that ensure smooth electrical operations, a contactor stands out as an essential device. It is widely used in motor control circuits and other electrical systems, enabling safe and controlled switching of electrical power. In this article, we’ll delve into what a contactor is, its purpose, how it works, its various types, and its applications.

What is a Contactor?

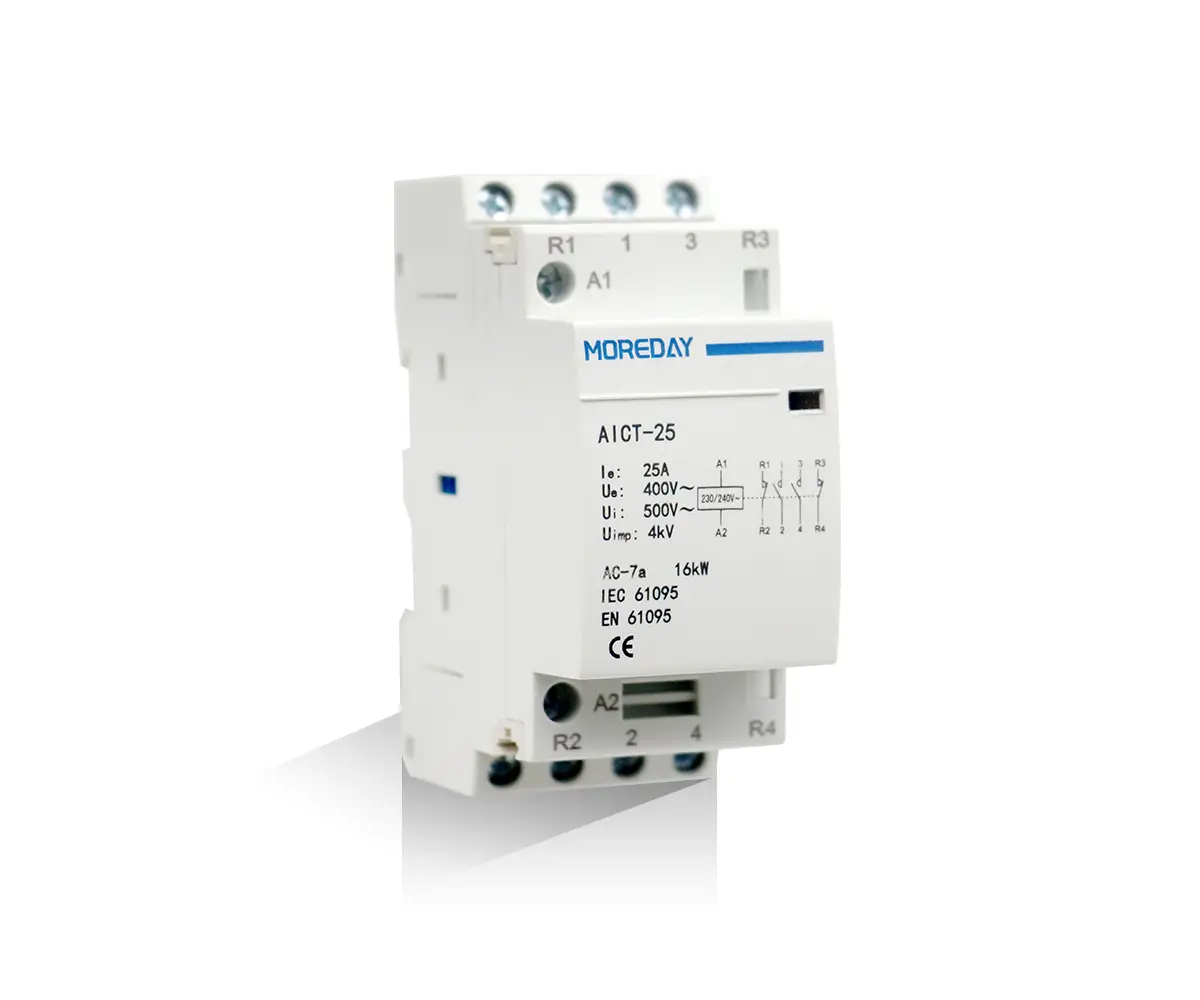

A contactor is an electrically controlled switch used for switching an electrical power circuit on or off. It operates similarly to a relay but is designed to handle higher power levels. Contactor switches are commonly used for controlling electric motors, lighting circuits, heating systems, and other electrical systems that require frequent switching. They are designed to handle the load currents of high-voltage systems, making them essential in industries such as manufacturing, HVAC, and electrical engineering.

The primary function of a contactor is to allow the flow of electricity to a device or system and to stop the current when required. A contactor typically consists of an electromagnet, contacts, and a spring mechanism. When an electrical signal is applied to the electromagnet, it either opens or closes the contacts, allowing or preventing the flow of electricity.

How Does a Contactor Work?

The working principle of a contactor is based on electromagnetism. The contactor consists of several key components:

Electromagnet (Coil): When an electrical signal is applied to the coil, it generates a magnetic field.

Contacts: These are the metal plates that either open or close the electrical circuit. The contacts are connected to the load circuit (for example, a motor or a lighting system).

Armature: The armature is the moving part of the contactor. It is attracted to the electromagnet when the coil is energized, causing the contacts to either close or open.

Spring Mechanism: A spring is used to return the armature to its original position when the coil is de-energized. This action ensures that the contacts open, and the current flow is interrupted.

When a control signal (often from a remote switch or a controller) is applied to the coil, it generates a magnetic field, which pulls the armature toward it. This movement causes the contacts to close, completing the electrical circuit and allowing the flow of electricity. When the control signal is removed, the magnetic field dissipates, and the spring mechanism pushes the armature back to its original position, opening the contacts and interrupting the current.

Components of a Contactor

Understanding the components of a contactor is key to understanding how it functions. Here’s a breakdown of the key elements:

1. Coil

The coil (also known as the electromagnet) is a wire wound into a coil and is responsible for generating a magnetic field when current flows through it. The coil is usually energized by a low-voltage control circuit. Once energized, the magnetic field attracts the armature and changes the state of the contacts.

2. Contacts

The contacts are the parts of the contactor that either open or close the electrical circuit. They are made of high-conductivity materials like silver or copper. Contacts are classified as:

Normally Open (NO): These contacts remain open when the coil is de-energized. When the coil is energized, the contacts close, allowing current to flow.

Normally Closed (NC): These contacts are closed when the coil is de-energized. When energized, the contacts open, interrupting the current flow.

3. Armature

The armature is the movable part that is attracted to the coil when energized. The movement of the armature causes the contacts to either open or close, completing or breaking the circuit.

4. Spring

The spring ensures that the armature returns to its original position when the coil is de-energized. This is what allows the contactor to automatically break the circuit and stop the current flow.

5. Auxiliary Contacts

Some contactors come with auxiliary contacts that can be used for signaling or controlling other devices in the system. These contacts can be NO or NC and can be integrated into the system to provide feedback about the state of the contactor.

Types of Contactors

Contactor types vary based on their application, current capacity, voltage rating, and switching characteristics. Here are the most common types:

1. Magnetic Contactors

Magnetic contactors are the most common type. They use an electromagnet to open and close the contacts. These contactors are used for high-voltage applications like controlling motors and other heavy electrical loads.

2. Thermal Contactors

Thermal contactors use a bimetallic strip to open the contacts in case of an overload. The bimetallic strip bends when it heats up due to excessive current, breaking the circuit. These are commonly used in systems where overcurrent protection is needed.

3. High-Voltage Contactors

These contactors are designed to handle voltages that are much higher than standard contactors. They are used in high-power industries, such as power generation or distribution.

4. Low-Voltage Contactors

Low-voltage contactors are used in applications that do not require high power. These contactors are typically found in residential and light industrial systems.

5. Latching Contactors

Latching contactors are used when it is necessary to keep the contacts in a closed position even after the control signal is removed. This can be achieved through mechanical latching or by using a holding coil. They are often used in applications where continuous operation is required without a constant control signal.

Applications of Contactors

Contactors are used in a wide variety of applications where controlled switching of electrical circuits is needed. Some of the most common applications include:

1. Motor Control

Contactors are used extensively in motor control circuits, enabling the starting and stopping of motors in both industrial and residential settings. They are typically used in conjunction with overload relays to protect motors from damage caused by excessive current.

2. Lighting Control

In industrial and commercial settings, contactors are used to control large lighting circuits. These circuits often require frequent switching, and contactors ensure that the lights are switched on and off as needed without overloading the system.

3. HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, contactors are used to switch large air conditioning units, compressors, and heating elements on and off. The use of contactors ensures that the equipment is safely operated and that the electrical systems are not overloaded.

4. Automation Systems

Contactor switches are also widely used in industrial automation systems to control machinery, conveyors, and other automated equipment. The ability to control large systems remotely via contactors adds flexibility and efficiency to operations.

5. Overcurrent Protection

Thermal and magnetic contactors can be used to protect electrical systems from overcurrent. In this application, the contactor will automatically disconnect the load circuit if the current exceeds safe limits.

Advantages of Using Contactors

Contactor switches come with several advantages, especially in large-scale industrial and commercial applications:

Safety: Contactors provide a safe means of switching electrical systems on and off remotely, reducing the risk of electrical accidents.

Durability: They are designed to handle high currents and voltages, ensuring long-lasting operation even under heavy loads.

Efficiency: Contactors allow for efficient control of large electrical systems, which can be operated with minimal manual intervention.

Overload Protection: Certain contactors are designed with built-in overload protection, preventing damage to electrical equipment.

Conclusion

A contactor is an essential device in modern electrical systems, providing a safe, efficient, and reliable way to control high-voltage circuits. Its versatility, durability, and ability to handle large currents make it indispensable in a variety of industrial, commercial, and residential applications. Understanding how contactors work, the different types available, and their applications can help you design and maintain efficient electrical systems, ensuring safe and reliable operations. Whether you're controlling a motor, lighting system, or an HVAC unit, the contactor plays a vital role in keeping your electrical circuits functioning properly.
